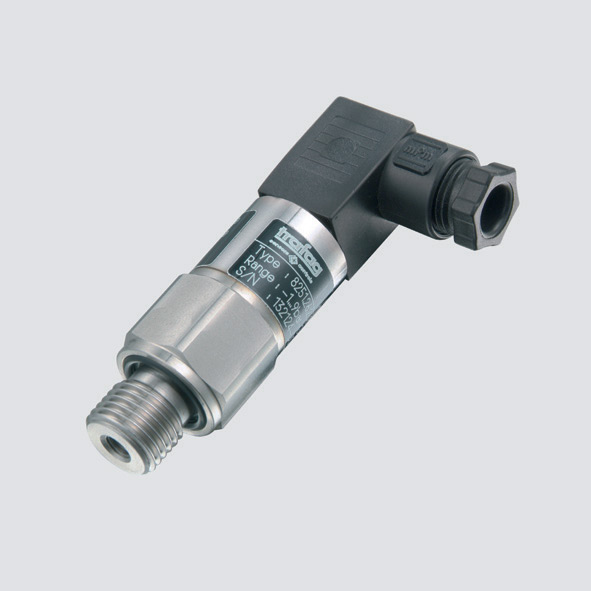

NAT (8251 series)
Industrial pressure transmitter, thin film on steel pressure sensor, high shock and vibration resistance, ranges between 0..+2.5 Bar up to 0..+600 Bar, standard outputs 4-20mA and 0-10 VDC other outputs on request. Media temperature
-25..+125 Celsius, Accuracy +/-0.2% FS NLH (BSL) process connection G1/4" (M). Electrical connector mini 90 degree electrical connector to IP65
|
 |

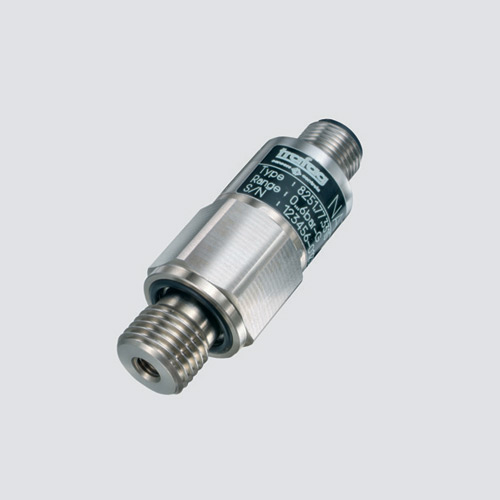

NAH (8253 series)
Hydraulics pressure transmitter, thin film on steel pressure sensor, extended shock and vibration resistance, ranges between 0..+2.5 Bar up to 0..+600 Bar, standard output 4-20mA other outputs on request. Media temperature
-40..+125 Celsius, Accuracy +/-0.1% FS NLH (BSL) process connection G1/4" (M). Electrical connector M12x1 4 pole to IP67.
|
 |

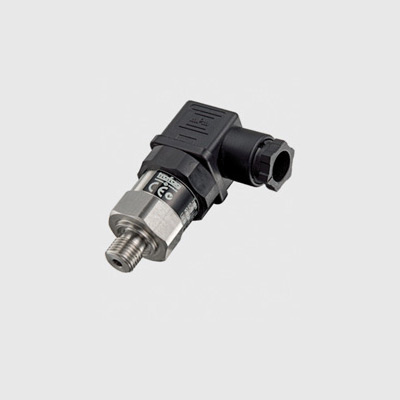

ECT (8472 series)
Industrial pressure transmitter, thick film on ceramic sensor, high shock and vibration resistance, ranges between 0..+1 Bar to 0..+250 Bar, standard outputs 4-20mA and 0-10 VDC other outputs on request. Media temperature -25..+125 Celsius, Accuracy +/-0.2% FS NLH (BSL) process connection G1/4" (M). Electrical connector EN175301-803 large 90 degree connector to IP65.
|
 |

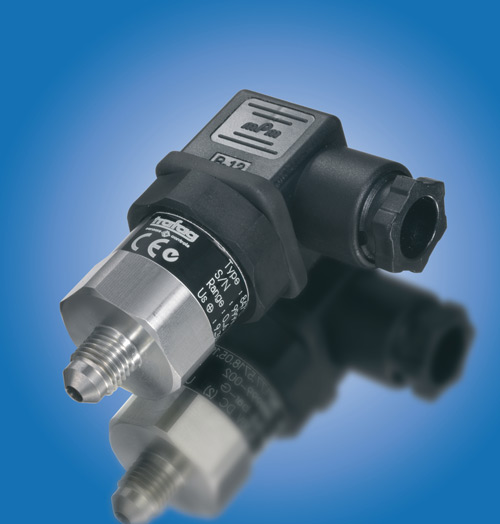

ECERV/ECTR (8471 series) for Refrigeration
Refrigeration pressure transmitter, thick film on ceramic sensor, CR seal, high shock and vibration resistance, ranges
-1..+1 to -1..+40 bar, standard output 4-20mA, other outputs on request. Media temperature -25..+85 Celsius, Accuracy +/-0.2% FS NLH (BSL) process connection 7/16-20UNF (M) or (F) with Schroder depressor. Electrical connector EN175301-803 large 90 degree connector to IP65.
|
 |

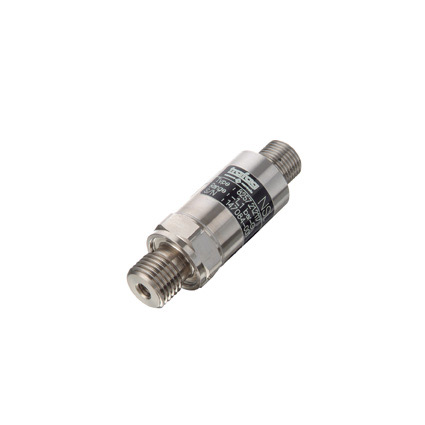

NSL (8257 series)
Industrial pressure transmitter, thin film on steel pressure sensor, high shock and vibration resistance, ranges between 0..+200 mbar to +2.5 bar, standard output 4-20mA, other outputs on request. Media temperature -40..+125 Celsius, accuracy +/-0.1% FS NLH (BSL) process connection G1/4” (M). Electrical connector M12x1 4 pole to IP67.
|
 |

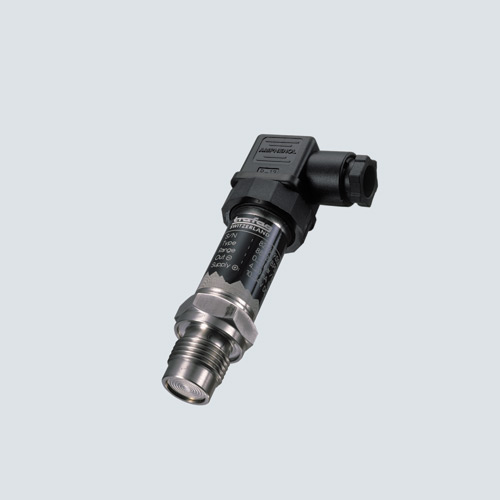

NAP (8842 series)
Marine approved pressure transmitter, piezio resistive sensor, high shock and vibration resistance, ranges 0..+100 mbar to +1000 bar, standard output 4-20mA other outputs on request. Media temperature -25..+100 Celsius (option to +150 Celsius), accuracy +/-0.5% FS NLH (BSL) process connection G1/2” (M) with flush & frontal diaphragms. Electrical connector DIN43650A large 90 degree connector to IP65.
|
 |

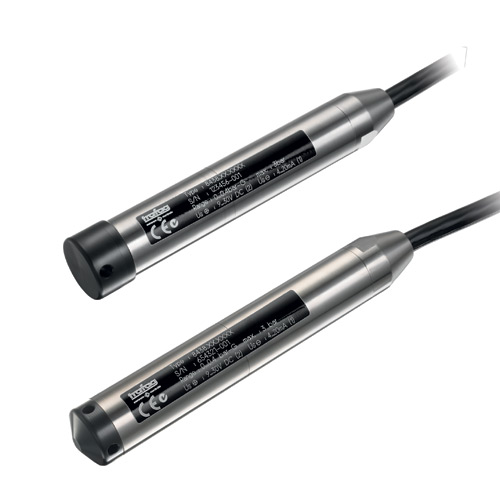

ECL (8438 series)
Submersible pressure transmitter, thick film on ceramic sensor, high shock and vibration resistance, ranges 0..+100 mbar to 0..+25 bar, choice of PUR; PTFE or PE cables with FKM; CR & EPDM seals depending on media requirement. Standard output 4-20mA Media temperature -25..+80 Celsius, Accuracy +/-0.3% FS NLH (BSL).
|
 |

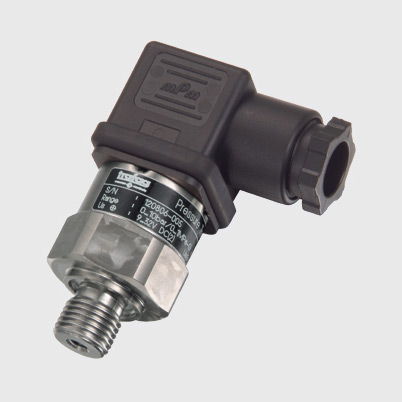

EPN (8298 series)
Marine approved pressure transmitter, thin film on steel pressure sensor, high & extended shock and vibration versions, ranges 0..+2.5 bar to 0..+600 bar with G1/4” (M) process connection, and to +2500 bar with M14x1.5 or M18x1.5 cone pressure connection, standard output 4-20mA, ratio-metric output available. Media temperature
-40..+125 Celsius, accuracy +/-0.2% FS NLH (BSL) Electrical connector EN175301-803 large 90 degree connector to IP65 to +600 bar, moulded cable to IP67 to +2500 bar.
|
 |

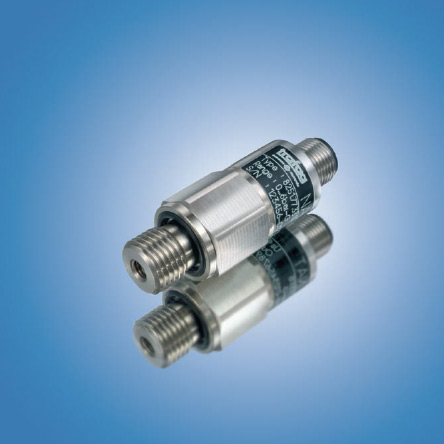

NAE (8255 series)
Marine approved pressure transmitter, thin film on steel pressure sensor, extended shock and vibration, ranges +2.5 bar to +600 bar with G1/4” (M) process connection, standard output 4-20mA ratio metric and 0-10 VDC available. Media temperature -40..+125 Celsius, accuracy +/-0.1% FS NLH (BSL) electrical connector M12x1 4 pole to IP67.
|
 |
ECON (8498 series)
Marine approved pressure transmitter for salt water applications, thick film on ceramic sensor, high shock and vibration resistance, ranges 0..+1 bar to 0..+250 bar with G1/4” (M) process connection, standard output 4-20mA. Media temperature -25..+85 Celsius, accuracy +/-0.2% FS NLH (BSL) electrical connector large DIN43650A 90 degree connector to IP65.
|
 |
NPN (8264 series)
Marine approved pressure transmitter, thin film on steel sensor, high shock and vibration resistance, ranges 0..+2.5 to 100 bar with EN175301-803 large 90 degree connector to IP65 and moulded cable to +400 bar to IP67. Media temperature -40..+100 Celsius, Accuracy +/-0.2% FS NLH (BSL) G1/4” (F) and flanged process connections available.
|
 |

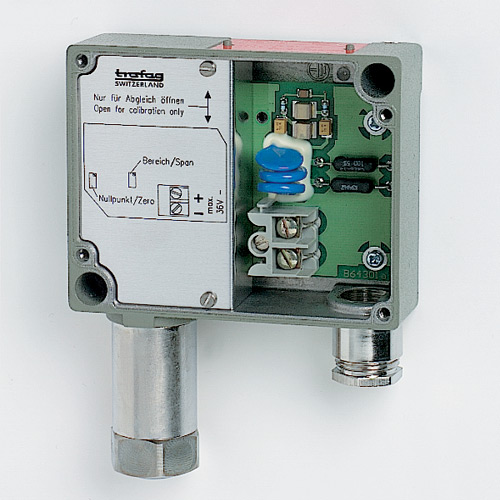

N (8202 series)
Marine approved pressure transmitter, thin film on steel sensor, high shock and vibration resistance, ranges 0..+1 bar to 0..+600 bar, standard output 4-20mA, Media temperature -25..+125 Celsius, Accuracy +/-0.2% FS NLH (BSL) G1/4” (F) process connection PG13 bottom entry cable gland to IP65. Limited Zero/Span adjustability.
|
 |

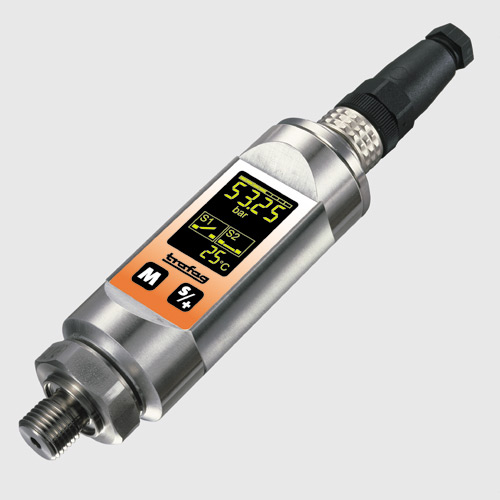

DCS (8864 series) Transmitter/Electronic Switch
Marine approved display control switch, thin film on steel sensor, high shock and vibration resistance, ranges 0..+2.5 bar to 0..+600 bar, standard output 4-20mA, with 2 programmable relays out. Media temperature -25..+125 Celsius. Selection of various engineering pressure. G1/4” (M) process connection M12x1 8 pole electrical connector to IP67 Display to IP65. LCD display with programming functions, display of pressure, switch position and temperature at sensor. Flanged version also available.
|
 |

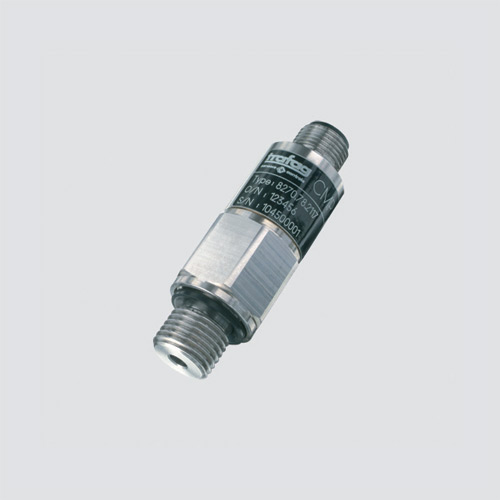

CMP (8270 series)
Pressure transmitter, thin film on steel sensor, extended shock and vibration resistance, ranges 0..+2.5 to 0..+600 bar, standard output CANopen bus protocol, Media temperature -25..+125 Celsius. Accuracy +/-0.2% FS NLH (BSL) G1/4” (M) process connection M12x1 5 pole electrical connector to IP67.
|
Data Page H72250 Trafag
