Instruments for Flow & Level & Float:

Data Page MELS-F Müller

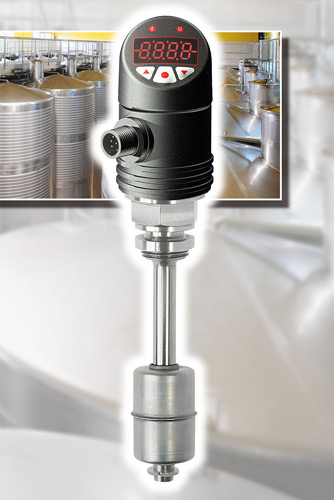

MELS-F
Level Sensor for non-aggressive fluids, with inbuilt 4 digit display adjustable & rotatable through 300 degrees. 4-20mA with superimposed HART-protocol, electronics fully potted IP65 minimum. Configuration via HART interface/software or keys. Optional radio transmission. Threads starting from 1” (M). Display unit PC, Housing PTB GF30, Process Connection Stainless Steel (1.4571). Various electrical connections available.

MEFL-F
Flow switch, dynamic flap, flow rates +1..+80 l/min Optional +0.4..+6 l/min. Inbuilt 4 digit display adjustable & rotatable through 300 degrees. 4-20mA with superimposed HART-protocol, electronics fully potted IP65 minimum. Configuration via HART interface/software or keys. Optional limit values contacts PROFIBUS/ EtherCat/ Modbus/ PWM. LCD indication with backlighting 5 digit 7 segment or 8 digit 14 segments. Optional radio transmission. Various process & electrical connections. Display unit PC, Housing PTB GF30, Sensor PPS/Brass.

Data Page MKFS Müller

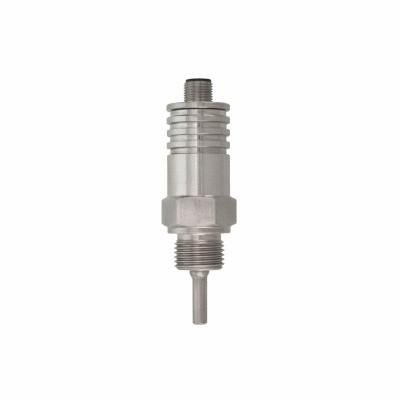

MKFS
Flow sensor for gasses for flow rates 0..25M/S. Measuring element calorimetric. Outputs 4-20mA: 0..20mA: 0-10VDC or RS232 interface (adaptor necessary). Electronics fully potted to IP67. Body and wetted parts in Stainless Steel (1.4571) 50mm to 250mm stem lengths, longer on request. 24 VDC supply with various electrical connections available.
