Differential Pressure Transmitters Switches Gauges:

Industrial; Marine; Hydraulic; Engines; HVAC; Pumping

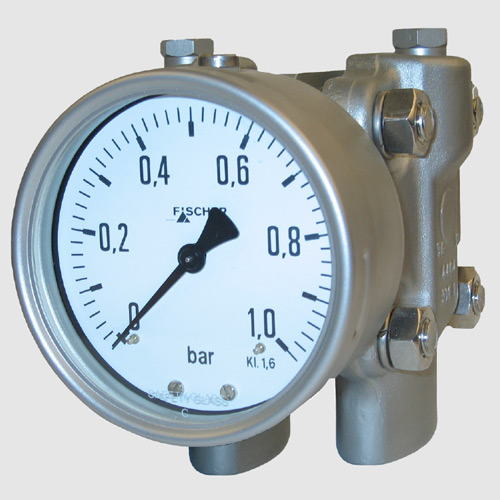

DA03
Heavy Duty Industrial Differential Pressure Gauge with 100mm or 160mm dial Indicator ranges +40 mbar to 25 bar, with 40 bar or 100 bar static options. Media temperature +100 Celsius maximum. Various pressure connections.

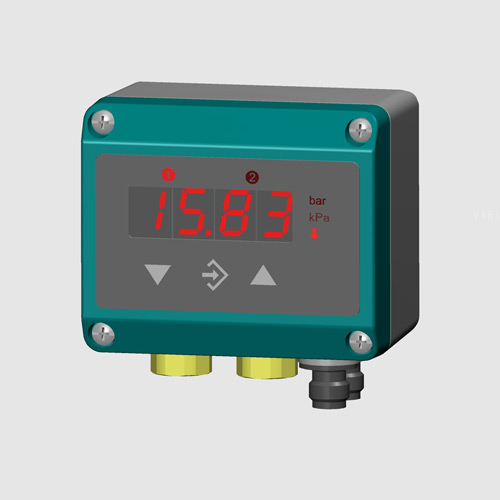

DE38
Pressure Transmitter with digital display and switched outputs, ranges 0..+400 mbar up to 6 bar. Application clean non-corrosive gases & liquids. Polymid housing IP65 protection, media temperature -10..+60 Celsius. Various outputs available, M12x1 4 or 5 pole electrical connector. Threaded or cutting ring process connections.

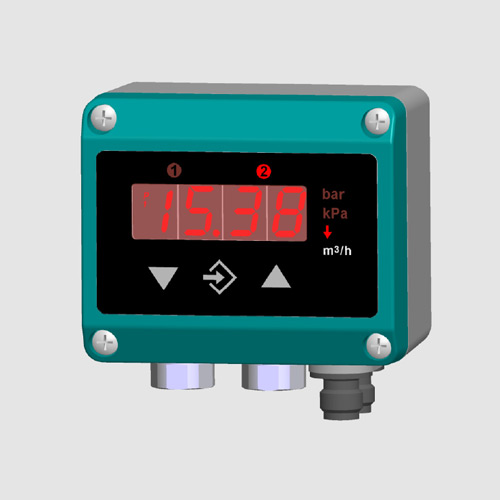

DE39
Pressure Transmitter with digital display and switched outputs, ranges 0..+6 bar up to 40 bar. Application for gases and liquids. Polymid housing to IP65, media temperature -10..+80 Celsius. Various outputs available, M12x1 4 or 5 pole electrical connector. Threaded or cutting ring process connections.

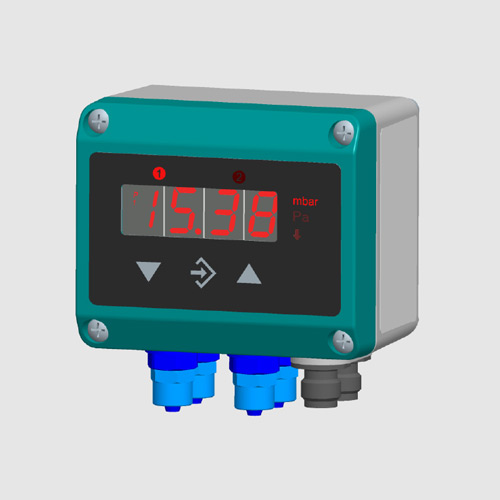

DE44
Pressure Transmitter with digital display and switched outputs, ranges 0..+4 mbar up to 100 mbar. Compound ranges available -2.5 mbar to +2.5 mbar up to -60 mbar to +60 mbar. Application for clean gases and air. Polymid housing to IP65, media temperature -10..+70 Celsius. Various outputs available, M12x1 4 and 5 pole electrical connectors. Threaded hose clamp process connection.

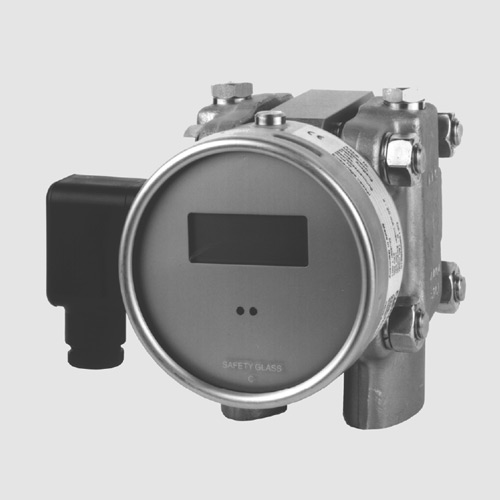

DE13
Heavy Duty Industrial Differential Pressure Transmitter with digital display, ranges 0..+40 mbar up to +25 Bar, Outputs 4-20mA or 0-10 VDC, DIN43650A Connector & Plug. Media temperature up to +70 Celsius maximum. Various pressure connections.

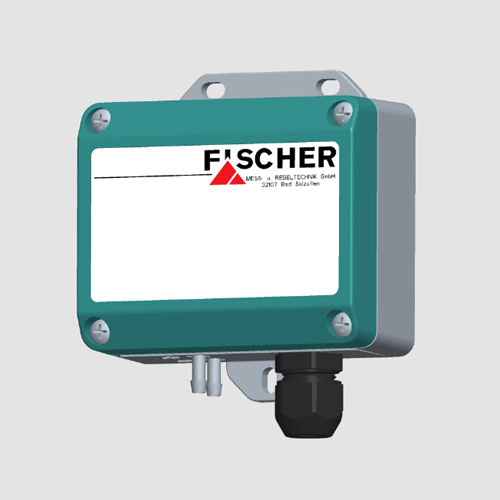

DE25
Differential Pressure Transmitter ranges 0..+2.5 mbar up to 100 mbar. Accuracy 0.5% FS typical. Polymid housing to IP65, media temperature -10..+50 Celsius. Various outputs available with 3 wire electrical interface, hose nipple pressure connection with M12x1 4 pole electrical connector. Not suitable for fluids.

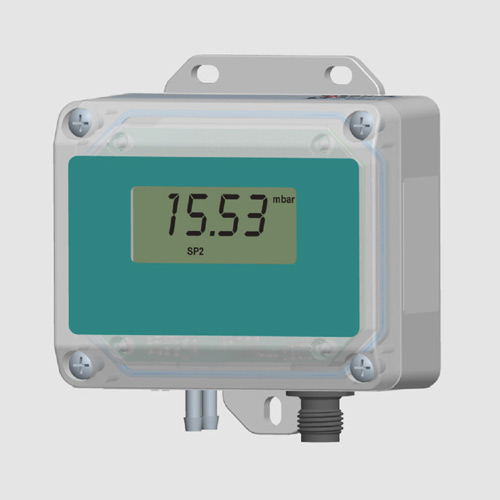

DE27
Similar to DE25 except 2 or 3 wire electrical interface.

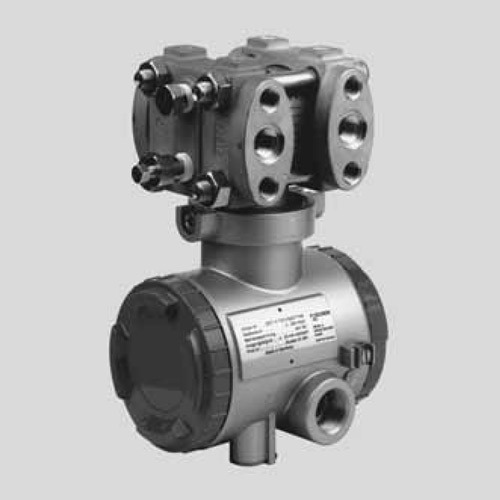

DE70
Heavy Duty Industrial Differential Pressure Transmitter ranges 0.6 mbar up to +60 mbar with 32 bar static, 0..+32 mbar up to 20 bar with 140 bar static. 4-20mA out 316L Stainless Steel wetted parts. Without display, or with analogue or digital display. 2 x ¼” npt threads, Electrical connection with internal terminal block with gland.

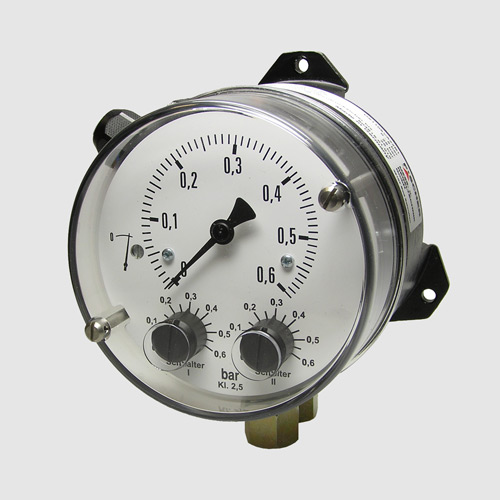

DS21
Heavy Duty Industrial Differential Pressure Switch for thermal oil applications, with European TUV approval. Ranges 0..+250 mbar up to 6 bar with 25 bar nominal pressure. Media temperature 85 Celsius maximum. Optional single or double microswitches. Thread or tube process connections. Electrical connection with prewired and numbered cable.

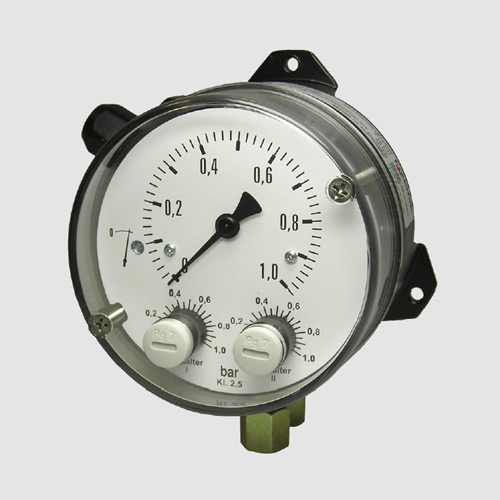

DS11
Same as DS21 above without TUV approval.

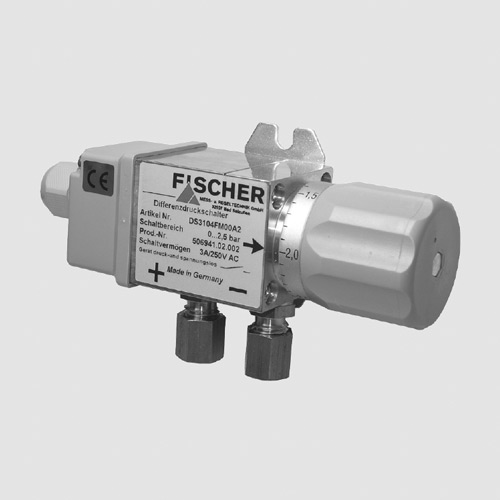

DS31
Differential Pressure Switch ranges 0..+600 mbar to 4 bar with static pressure to 16 bar. Media temperature 80 Celsius maximum. Thread or tube process connections, electrical connection by prewired and numbered cable, with single microswitch and external adjustment with scaled knob.
