Pressure Transmitters:

Data Page MEPS-S Müller

MEPS-S

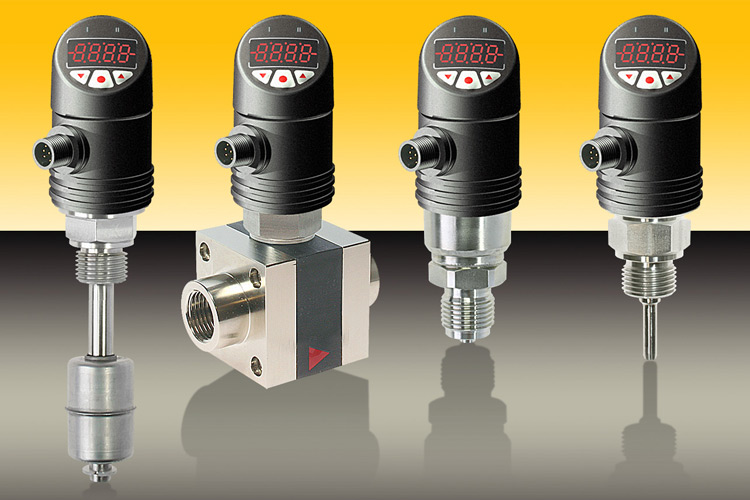

Pressure Transmitter with inbuilt 4 digit display, adjustable & rotatable through 300 degrees. Makrolon Head. Ranges 0..+100 mbar up to 1000 bar. 4-20mA with superimposed HART-protocol, electronics fully potted IP65 minimum. Configuration via HART interface/software or keys. 2 electronic limit values (open collector). Optional radio transmission. Various process connections available of Stainless Steel. Display unit PC, Housing PTB GF30. Various electrical connections available.

Data Page MEPS-M Müller

MEPS-M
Melt Pressure Sensor with inbuilt 4 digital display adjustable & rotatable through 300 degrees. Makrolon Head.  Ranges 0..+100 bar up to 1000 bar. 4-20mA with superimposed HART-protocol, electronics fully potted IP65 minimum. Configuration via HART interface/software or keys. 2 electronic limit values (open collector). Optional radio transmission. ½” 20 UNF 2A or M18x1.5 threads, process connection of Stainless Steel (1.4545). Display unit PC, Housing PTB GF30. Various electrical connections available.

Data Page MASSDR Müller

MASSDR
Melt Pressure Transmitter, for plastics rubber & food pressure ranges 0..+50 bar up to 2000 bar. Output 3,3 mV/V
+/-2%, optional 2mV/V, also 0..+20mA, 4-20mA & 0-10 VDC. Linearity +/-1% FS, optional 0.5% FS. Hysteresis <+/-0.1% FS. Supply voltage 7-10 VDC max 12V DC, optional 12..+30 VDC for 0 (4)..20mA & 0-10 VDC. Maximum Temperature +400 Celsius. Connection threads ½”-20 UNF or M18 x 1.5. Head eloxiert aluminium shaft Cr-Ni Stainless Steel, resistance membrane of Cr-Ni Stainless Steel, optional Hastelloy.

Data Page MHPS Müller

MHPS

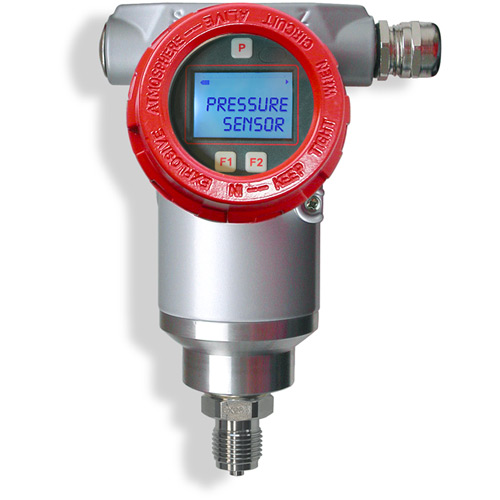

Heavy Duty Industrial Pressure Transmitter with 100:1 turndown, pressure ranges 0..+100 mbar to +1000 bar. 4-20mA with superimposed HART-protocol. Optional limit value contacts PROFIBUS / EtherCat/ Modbus/ PWM, Accuracy 0.25% FS, LCD indication with backlighting 5 digit 7 segment or 8 digit 14 segments. Optional radio transmission. Diecast aluminium enclosure to IP65, Media Temperature -30..+100 Celsius option -40..+125 Celsius, various process connections, all wetted parts Stainless Steel.
