Valve Blocks:

For Pico series flanged pressure switches and pressure transmitters
Data Page H72361 Trafag

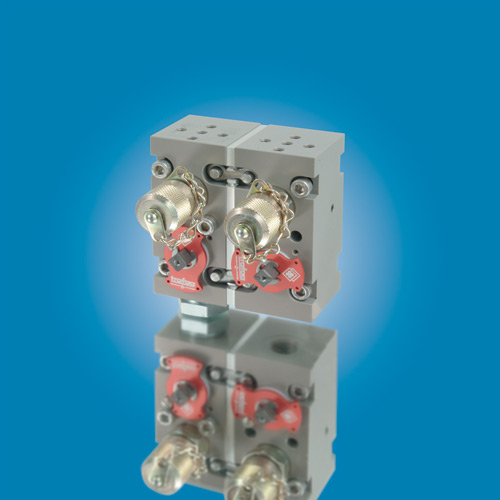

DVB series (Diagnostic Valve Block)
Three series of valve blocks, up to 5 instrument points, with individual pressure in, with test port and shutoff for each instrument. With common pressure in to multiple instruments, with shutoff and individual or common test port. Suits all Pico series flanged pressure switches and pressure transmitters. Blanking plates and flanged connector block providing G1/4” (F) process connection. Test port pressure rated to 100 bar.
